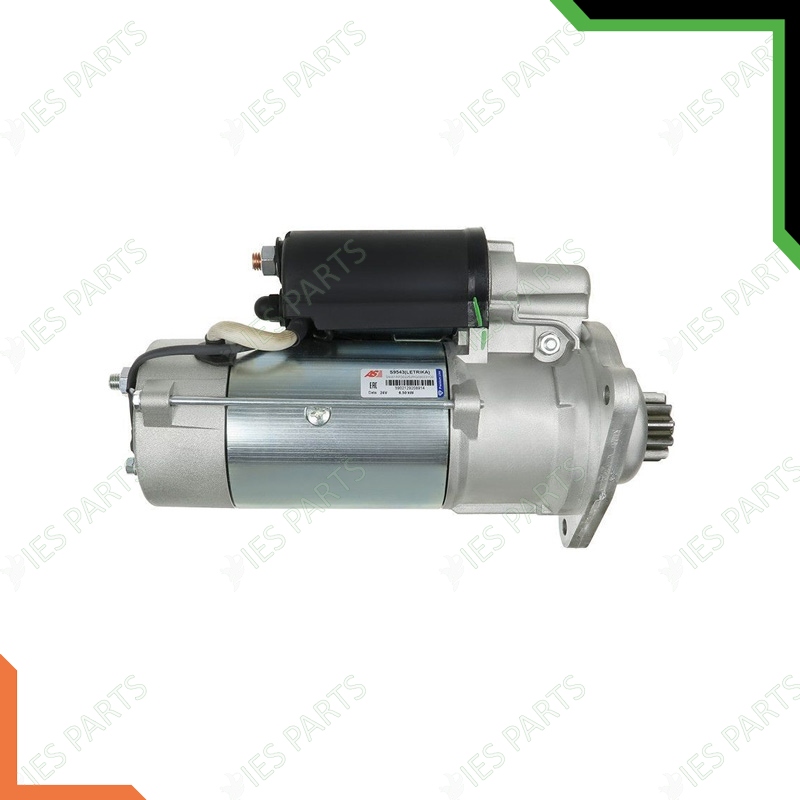

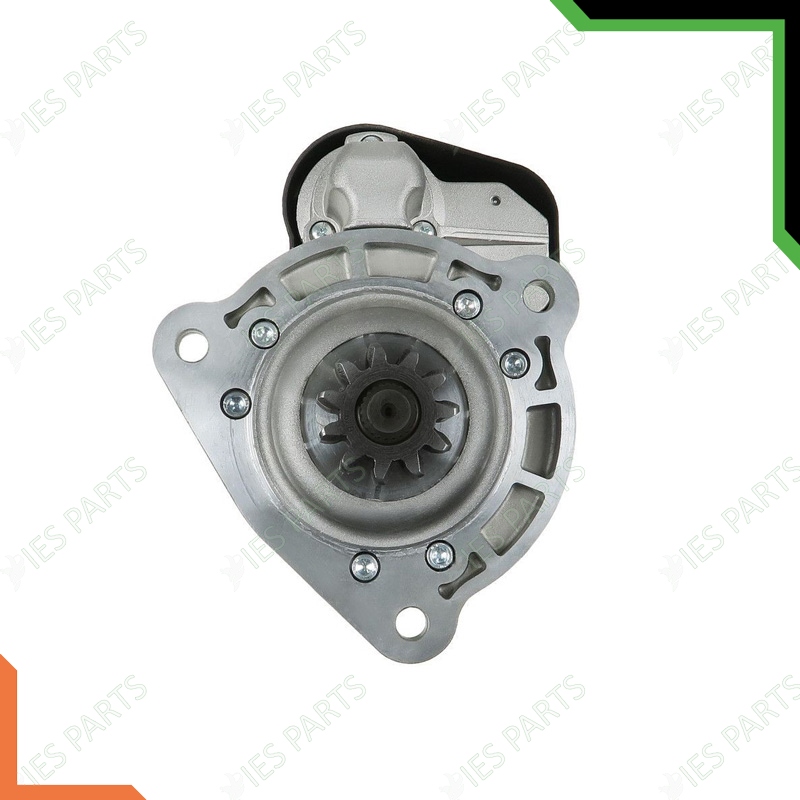

Starter MAHLE MS 203 - Jenbacher 1201862
suitable for Jenbacher type 3 & 4
Part #: 1201862
Stock : AVAILABLE
Call or contact for price
Description
Power (kW): 6.5
Voltage (V): 24
Number of teeth (z): 11
Direction of rotation: Right
Position: Right
Number of mounting holes: 3
Family group: AZG
Auxiliary start relay: RE
Thermal protection (): TP
Noseless (NL): NL
Type of gearbox: with reduction gearbox
Ground switched: IG
Anchorage: H3
Distance between two teeth (W): 16.78 mm
Flange -Ø [mm]: 92.0 mm
Bore Ø 1 [mm]: 10.9 mm
Ground, terminal 31: 31.0
Module (m): 3.5 mm
Outer diameter of the pinion (dk): 47.5 mm
Mounting angle 1 [°] (a 1): 52.5 °
Diameter of fixing points [mm] (R): 146.0 mm
For flywheel depth: 51.0 mm
Specifications
Genuine / Alternative: Original
Power [kW] : 6.5
Weight (kg): 18
Voltage [V]: 24
